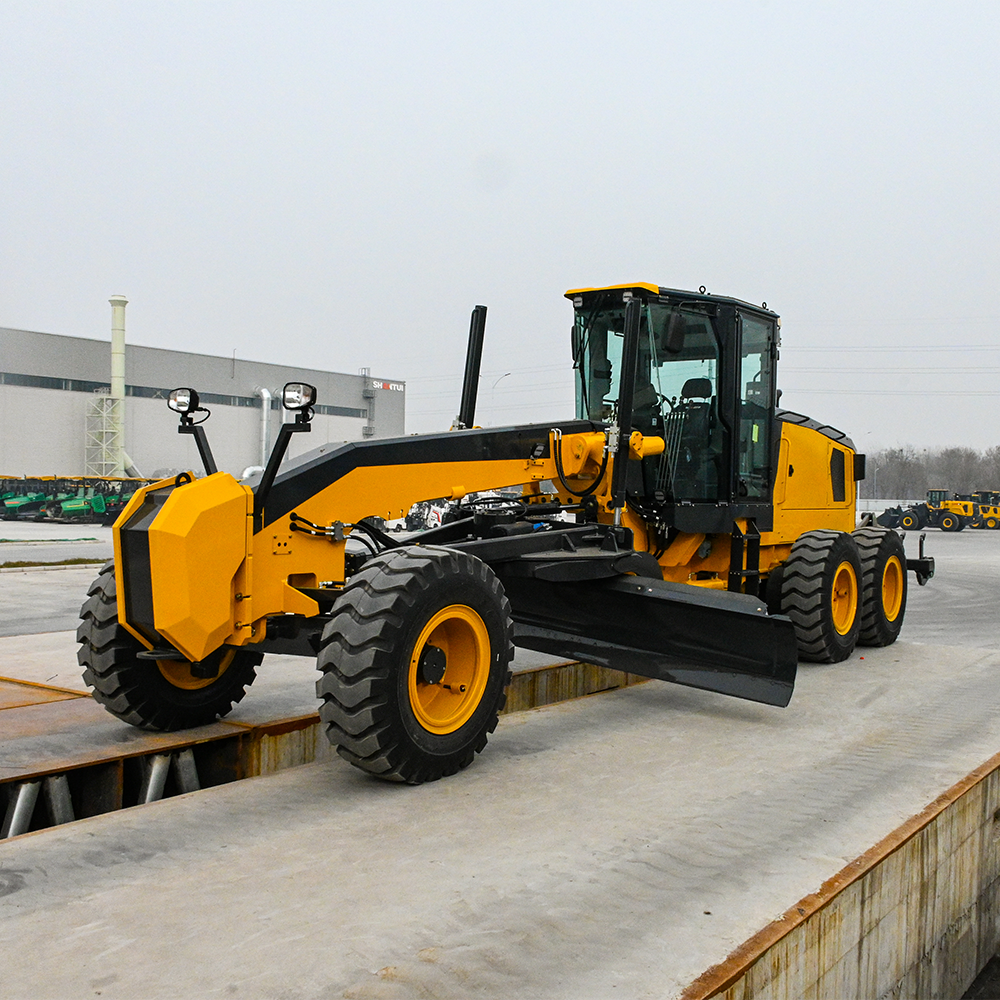

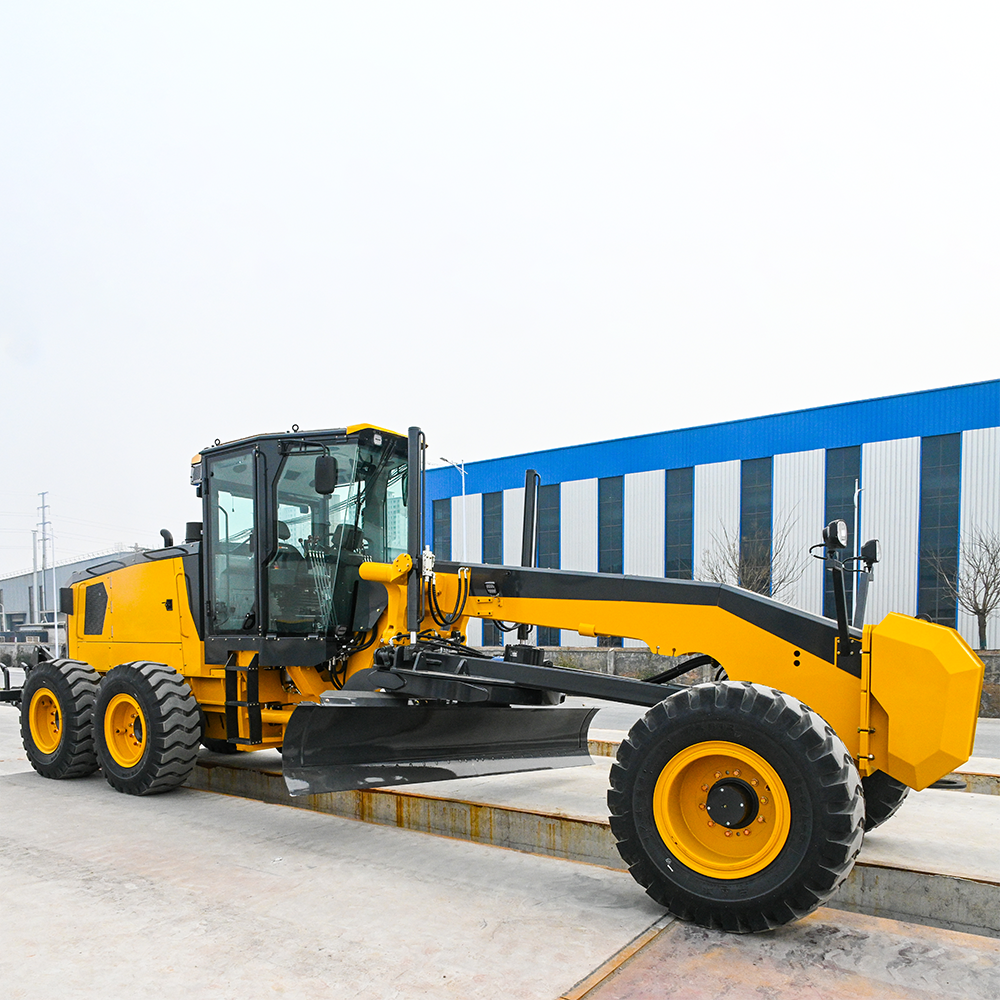

Shantui SG17-B6 14.8 Ton Motor Grader – Cummins 180HP Engine, 3660mm Moldboard for Road Construction & Site Preparation

Product Description

🟠 The Shantui SG17-B6 is a high-performance 170-class motor grader designed for medium to large-scale road construction, municipal engineering, mining site preparation and agricultural land leveling.

🟠 Powered by the Cummins 6BAA5.9-C180 diesel engine, it delivers 132kW (180HP) of rated power and 770N·m of maximum torque, providing exceptional traction (84KN) and stable power output even under heavy load conditions. The advanced hydraulic transmission system ensures smooth shifting and precise control, significantly improving operational efficiency.

🟠 The working device features a heavy-duty slewing bearing and Shantui's proprietary wear-resistant cutting edges, ensuring smooth rotation, superior durability and excellent impact resistance. The 3660mm wide moldboard can be tilted, angled and lifted hydraulically, meeting diverse grading requirements.

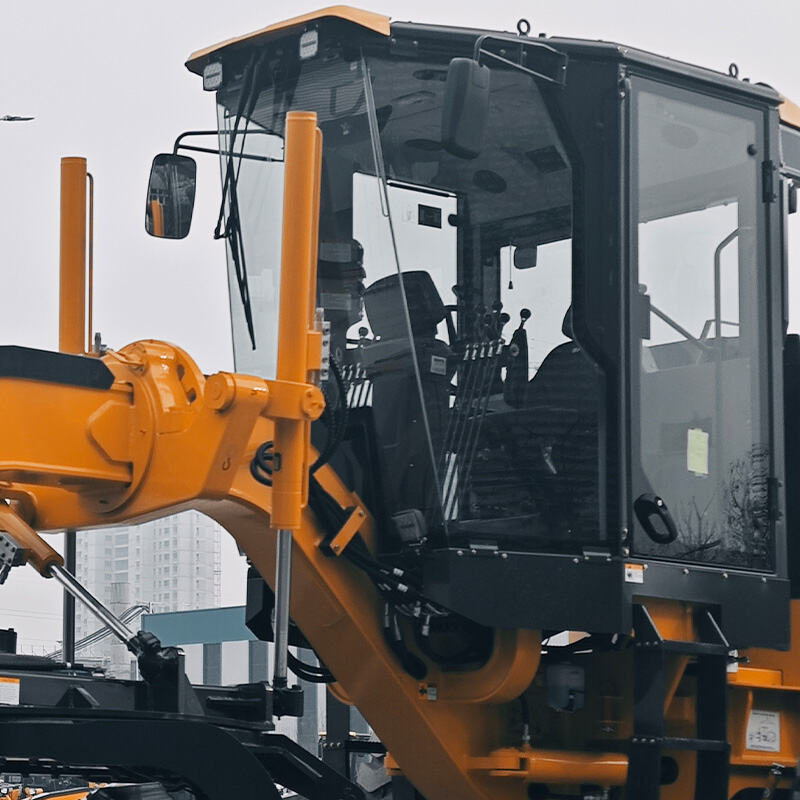

🟠 The pillarless cab design offers an unprecedented 320° panoramic field of vision, eliminating blind spots and enhancing operational safety. It is equipped with a mechanical suspension seat, electronic control handles and air conditioning, reducing operator fatigue during long working hours.

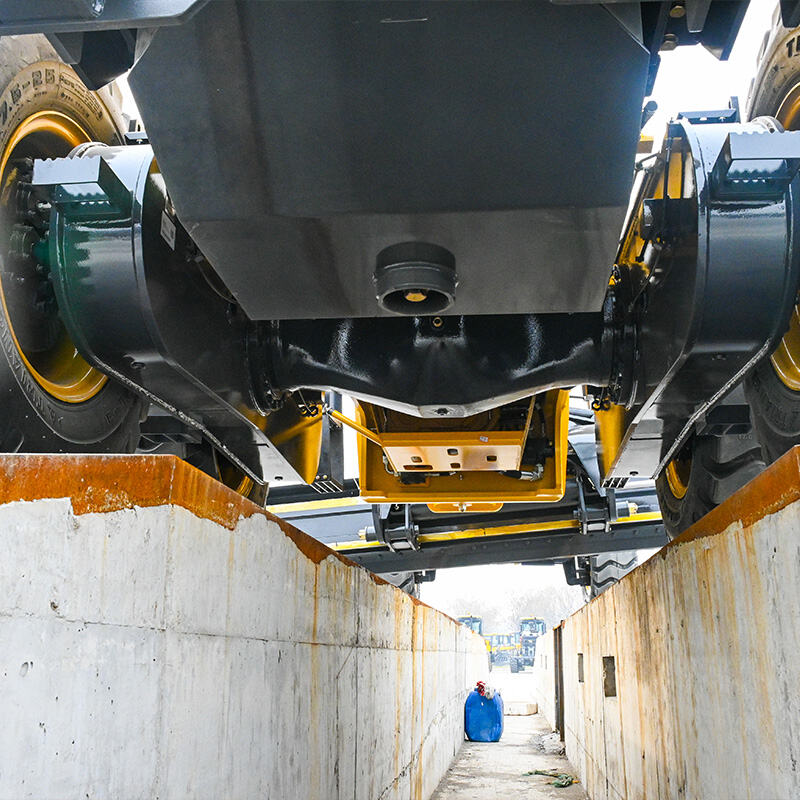

🟠 Designed for easy maintenance, all lubrication points and oil fillers are externally accessible for ground-level servicing. The box-type heavy-duty frame, optimized through CAE analysis, provides superior bending and torsion resistance, ensuring long service life in harsh working environments.

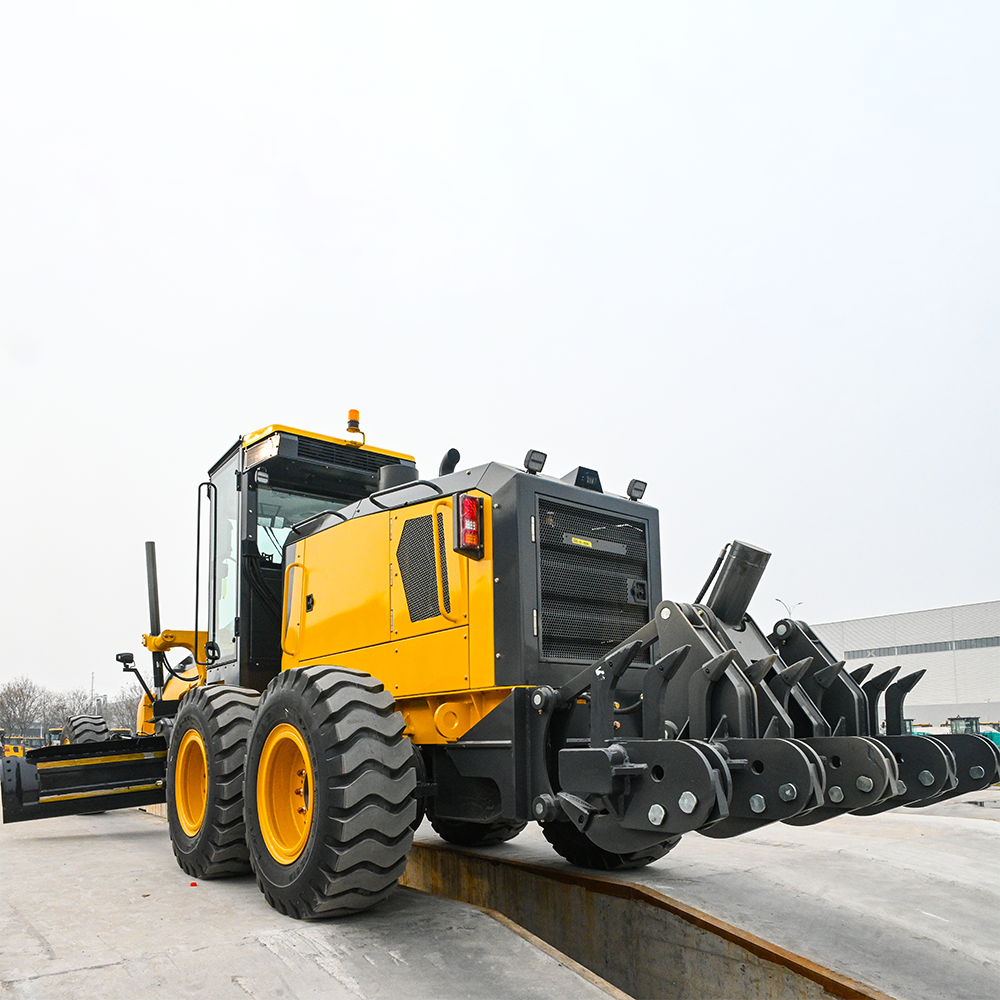

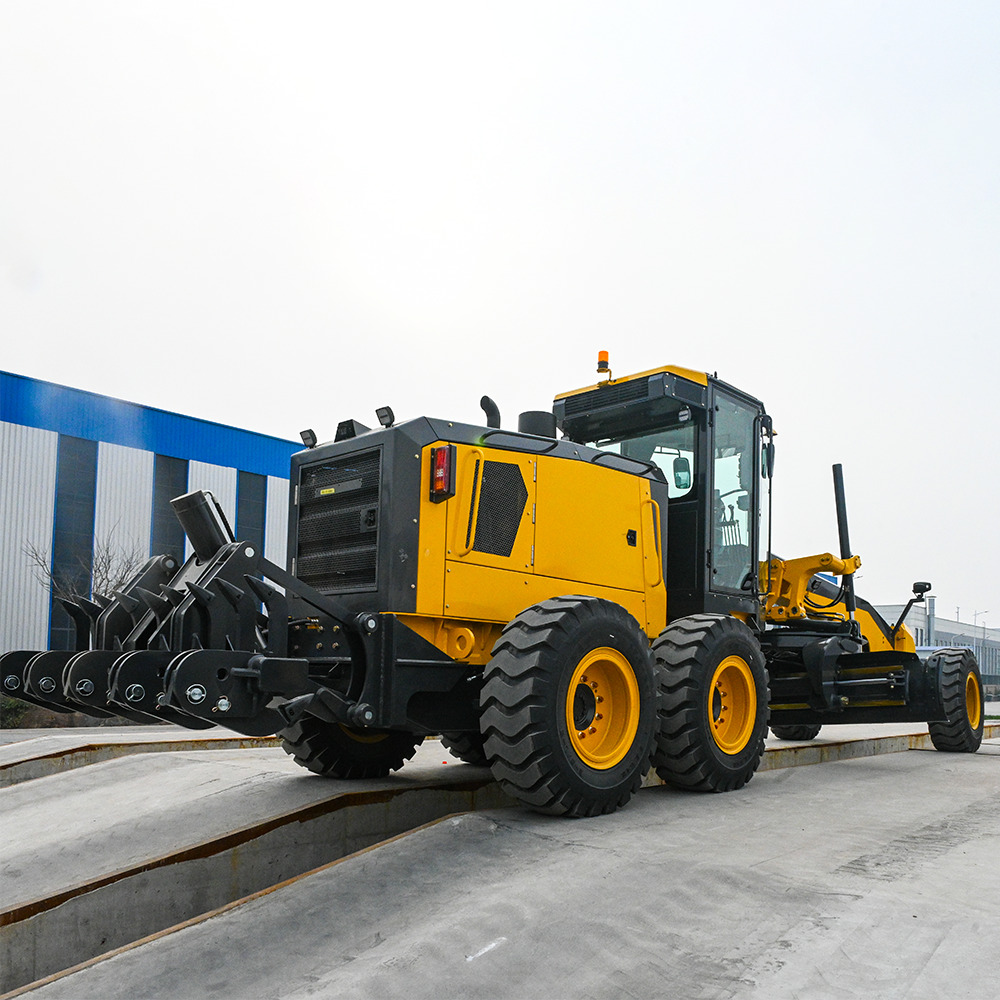

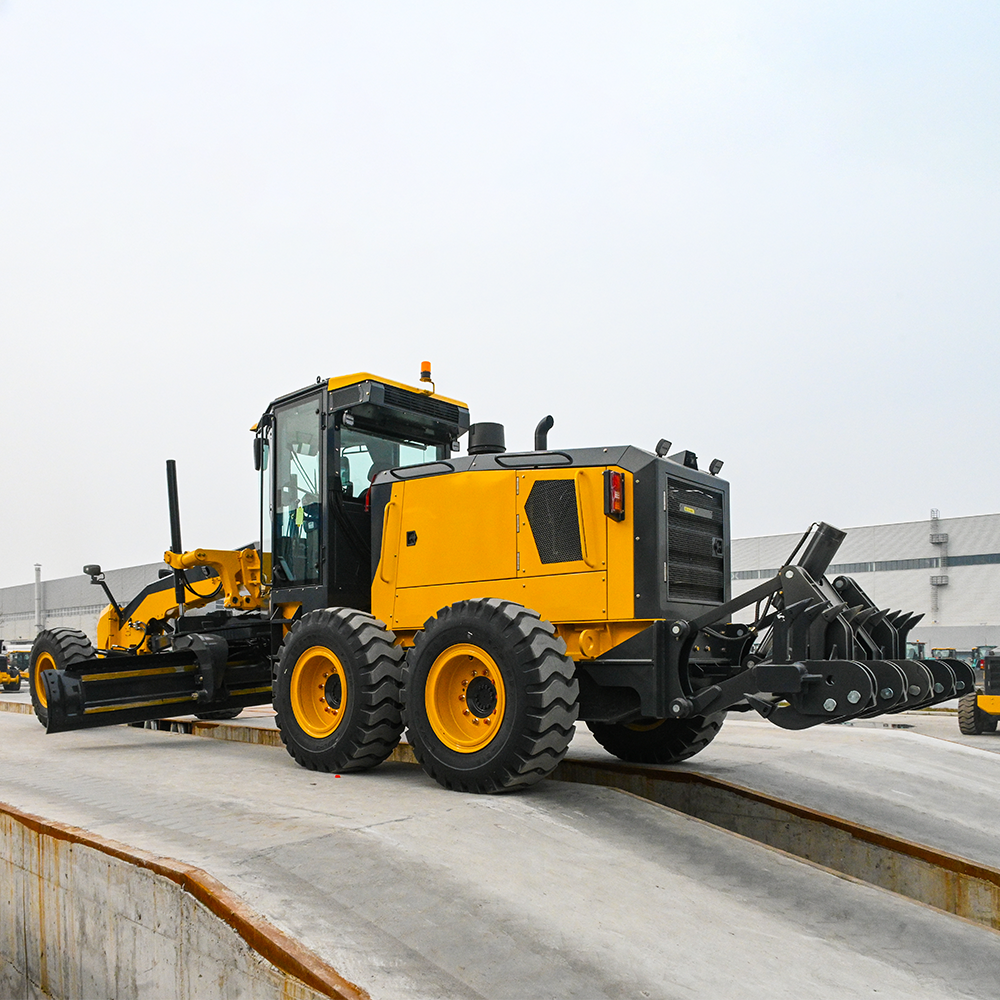

🟠 Optional attachments including front bulldozer blade and rear ripper further expand its versatility, making it a truly multi-purpose construction machine.

Product Parameter Table

FAQ

Q1: What is the operating weight of the Shantui SG17-B6?

A: The standard operating weight is 14,800 kg (14.8 tons).

Q2: What engine does the SG17-B6 use?

A: It is equipped with a Cummins 6BAA5.9-C180 diesel engine delivering 132kW (180HP) of power.

Q3: What is the maximum speed of this motor grader?

A: Maximum forward speed is 43 km/h and maximum reverse speed is 30 km/h.

Q4: What attachments are available for the SG17-B6?

A: Standard configuration includes the main moldboard. Optional attachments include front bulldozer blade and 3-shank rear ripper.

Q5: What is the emission standard of this machine?

A: The standard model meets Stage II / China II emission standards.

Q6: Is the cab ROPS certified?

A: Yes, the cab is ROPS/FOPS certified for operator safety.
